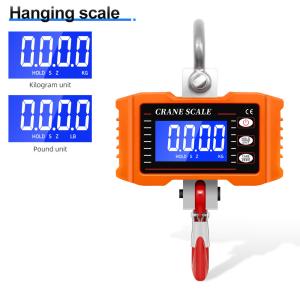

OCS-05-S 500kg 1000lb Industrial Hanging Crane Scale with Electronic LCD LED Display Aluminum Alloy Stainless Steel

MOQ : 100

Price : $19.80/pieces 2-4999 pieces

Place of Origin : Hunan China

Brand Name : OEM

Certification : ISO,CE,ROHS,FCC,OIML

Model Number : OEM

Delivery Time : 5-8 business days

Payment Terms : T/T,Western Union

Supply Ability : 100 pieces per day

warranty : 1 Year, 1 years

customized support : OEM, ODM, OEM

place of origin : Guangdong, China, Guangdong, China

brand name : OEM, JUANJUAN

accuracy : 50g

model number : OEM, S082

type : CRANE SCALE

display type : LED, LCD, LCD

material : Aluminum alloy + stainless steel

Name : Heavy Duty Hook Scale

Product name : weighting scale

Op. Temp. : 10℃~+40℃

Scale Type : Crane Scale

Operating Temperature : 0°C to 40°C

Model : TCS Series Platform Scale,ACS Series Price Scale

Material : Stainless Steel,Carbon Steel

Platform Size : 400mm x 500mm, 500mm x 600mm, 600mm x 800mm, 800mm x 1000mm,100*100cm,120*120cm,150*150cm

Capacity : 60kg, 100kg,150kg,200kg, 300kg, 600kg, 1000kg, 1500kg,3000kg

Communication : RS232, RS485, USB, Ethernet,Bluetooth,wifi,3G,4G,5G,LoraLAN

Storage Temperature : -25°C to 55°C

Display Resolution : 1/3000, 1/6000, 1/15000, 1/30000

Certifications : CE, OIML, NTEP, ISO,CE,ROHS,FCC

Functions : Tare, Zero, Accumulation, Counting, Checkweighing, Hold

Accuracy : 0.1kg, 0.2kg, 0.5kg, 1kg, 2kg, 5kg

Display : LED/LCD

Power Supply : 110-240AC/DC

Units Of Measure : kg, lb, oz, g

Power Source : Rechargeable Battery

Contact Now

Specification

Product Name	OCS-05-S 500kg Electronic scale
Material	Stainless steel
Function	Weighing
Package	Retail box

Product Description

Features:
This scale is a combination of sound and proven mechanical design, with today's most advanced electronics to provide a superb feature set.It is versatile,reliable,accurate and easy to operate.

1. Superb Quality:Strictly in accordance with OIML R76, Chinese GB/T11883-2002 national standards, and European CE directives.
2. Great Safety:Aluminum-casting case,high firm hook and shackle,dedicated weighing loadcell for safety installation
3. Strong Reliability:Cutting-edge technology, quality integrated circuit for high performance and long-time stability.
4. Broad Applicability:Popular and applicable in storage,textile,metallurgy industry,and so forth.
5. Complete Function:Resolution switch, unit conversion, auto power-off, battery inspection,etc.

Specifications:
1. Accuracy:Chinese GB/T 11883-2002 CIII eqv. OIML R76
2. Tare Range:100% F.S.
3. Zero Range:4%F.S
4. Stable Time:≤10sec
5. Overload:100% F.S.+9e
6. Safety Load:120% F.S.
7. Ultimate Load:400%F.S.
8. Battery:3*AA 1.5V batteries.(not included)
9. Battery Life:≥65hour (tested by dedicated batteries,backlight level 3, always lit)
10. Display:22mm/11mm HTN LCD with backlight
11. Op. Temp.-:10℃~+40℃
12. Op.Humidity:20℃≤90%

Note:

For good performance and precise measurement, be careful with daily operation and maintenance.

1. Do NOT overload scale.This will damage loadcell and void warranty.
2. Do NOT leave load hung on the scale for long.This will decrease scale's accuracy and shorten loadcell's life.
3. Inspect shackle and hook before using.Check clips,pins and screws regularly.
4. Check battery frequently.When scale runs out of power, replace the dead batteries with new ones.
5. Rotate load rather than scale if needed.
6. Do NOT use scale under thunder or rain.
7. Hang scale on shelf in dry and well-ventilated room. Do NOT place scale on the ground directly.

8. Do NOT attempt to repair scale yourself.Contact your local representative.
